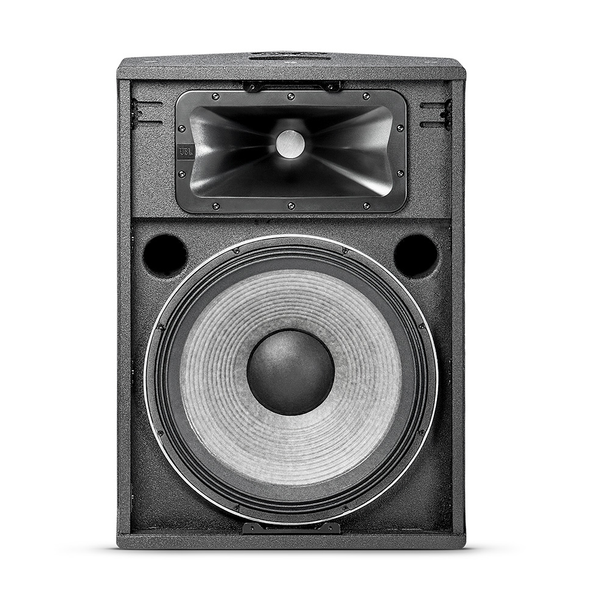

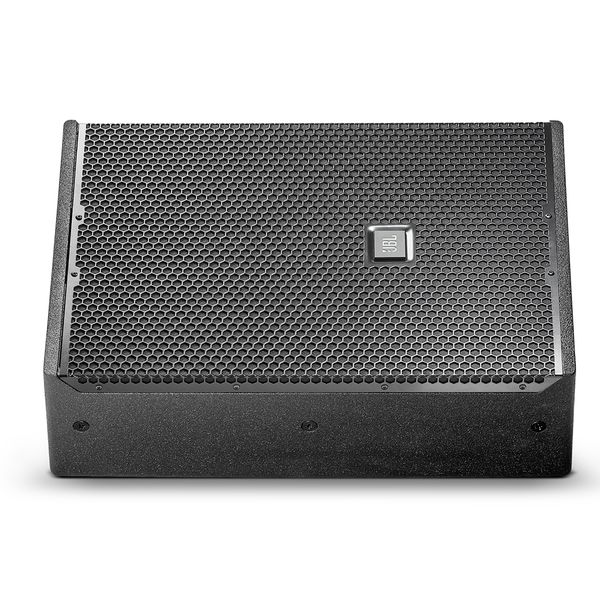

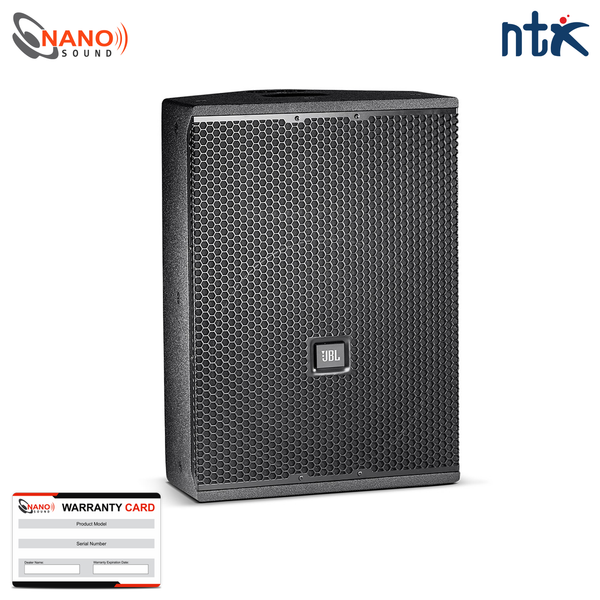

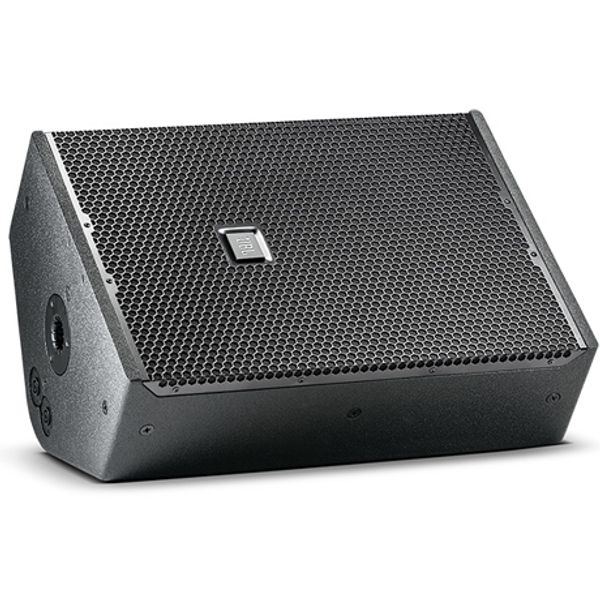

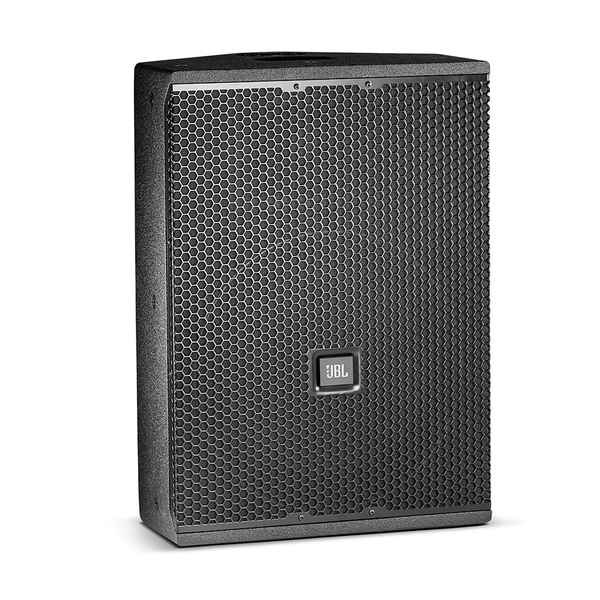

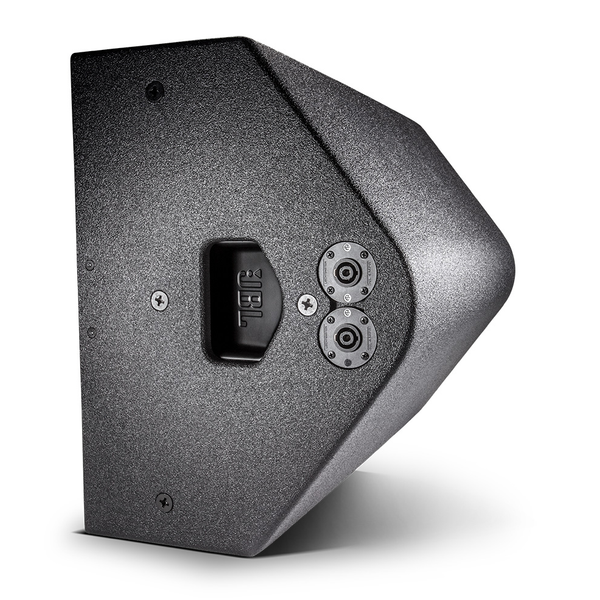

JBL VTX F15/pc
- CHOICE
#NHJR728869
Color & Size
Item Description
JBL
Nano Sound
0%Fulfilment Rate
0Rating
436Followers
JBL
Nano Sound
0%Fulfilment Rate
0Rating
436Followers
Item Description
Key Features
1000W LF, 200W HF cont 4000W LF, 800W HF peak
* Bi-Amplified 2-Way System
* D2430K D2 Dual Diaphragm Dual Voice Coil
Compression Driver
* Progressive Transition Waveguide (90° x 50°)
*c Differential Drive®, dual neodymium
magnet, dual voice coil, Direct Cooled™
15" transducer for low weight and high
output
* BSS Audio OmniDriveHD V5 Processing for
use with Crown ITechHD and Crown VRack
* Dedicated OEM factory presets provide
unparalleled application flexibility
* JBL HiQnet Performance Manager™ Control
| System Type | 2-Way Premium Multi-Purpose Loudspeaker with 15” Differential Drive® Woofer and D2 Dual Driver |
| Components | 1 x 2265H 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
| Coverage Pattern | 90 x 50 degrees |
| Frequency Range (-10dB) | 43 Hz - 21.5 kHz (short throw mode, free field) 42 Hz - 21.5 kHz (monitor mode, half-space) |
| Frequency Response (±3 dB) | 59 Hz - 20 kHz (short throw mode, free field) 58 Hz - 20 kHz (monitor mode, half-space) |
| Sensitivity | 98 dB LF, 108 dB HF |
| Nominal Impedance | LF = 8 ohms HF = 20 ohms |
| Transducer Power Rating (AES 2 hour) | 1000W LF, 200W HF cont 4000W LF, 800W HF peak |
| Dimensions (H x W x D) | 640.1mm x 457.2mm x 327.7mm (25.2in x 18in x 12.9in) |
| Net Weight (each) | 22.9 kg (50.5 lbs) |
| Maximum Peak Output *2 | 134 dB (Preset: VTX F15 80) |
| LF Driver | 1 x 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer |
| HF Driver | 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
| Enclosure | Symmetrical stage monitor (53 degree angle); 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish; integral recessed handle |
| Suspension / Mounting | Integral pole mount socket (35 mm diameter); 16 x M10 mount points; Optional U-bracket and extension rod (SS5-BK) accessories available |
