• 1/9

$ 1908.50

JBL SRX 835

  • CHOICE
#NHJR752551

Color & Size

Item Description

JBL
By
Nano Sound

42.86%Fulfilment Rate

0Rating

349Followers

JBL
By
Nano Sound

42.86%Fulfilment Rate

0Rating

349Followers

Item Description

Features:

  • 15" Three-Way Bass Reflex Passive System
  • Premium JBL Transducers
  • Rugged, versatile enclosures
  • Tunings available for Crown amps and dbx signal processors
  • Fully supported in Audio Architect
  • Power Handling: 3200W Peak, 1600W Program, 800W Continuous
  • Frequency Range: 32Hz-20kHz
  • Frequency Response: 43Hz-20kHz
  • Max SPL: 130dB (Peak)
  • Coverage Pattern: 60x40
  • Amplification options: Passive/Bi-Amp
System TypePassive 15”, three-way, bass-reflex
Maximum SPL Output124dB (Continuous), 130dB (Peak)
Frequency Range (-10dB)32hz - 20khz
Frequency Response (-3 dB)43Hz - 20Hz
Sensitivity95dB
System Power Rating3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance8 Ohm
InputsNL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational ModesPassive/Bi-Amp
LF Driver2275F
MF Driver2107H
HF Driver2432H
Coverage Pattern60 x 40
Crossover Frequency330hz & 2.4khz
Enclosure18mm Duraflex coated plywood
Suspension/MountingSingle 36mm pole socket, 12 x M10 Suspension points

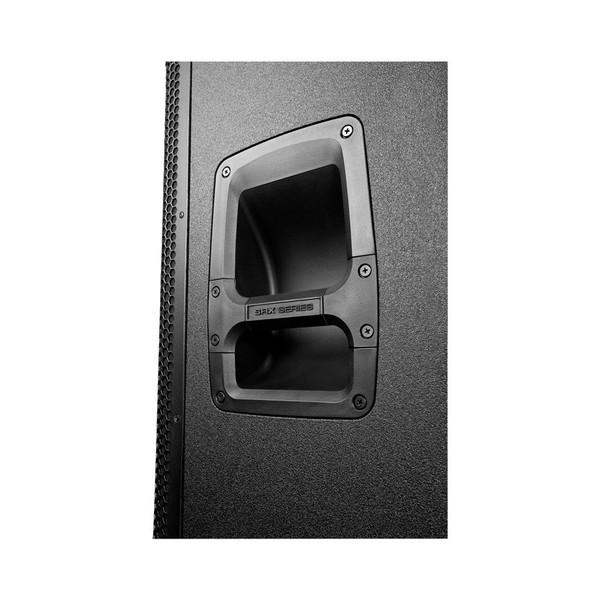

Handles2
FinishObsidian Duraflex™ finish
GrillePowder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D)476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
Weight95.0 lbs (43.1kg)
