Description
NOTE: The meter cannot be used to test AC current and cannot be used to test AC voltage as the RECEPTACLE voltage when the dial is located in the DC current range.

Features:
Use battery: 9 volts
- Overload Protection on all ranges
- Housed in a rugged rubber boot with integral stand
- Low Battery Voltage Indication
- Portable & Compact Design
- Data Hold Function & Diode Test Facility
- 20 Position Rotary Switch
- Removable Thick rubber casing protects Multimeter from splashes & Minor Bumps
- Measures AC & DC Voltage, DC Current, Resistance, Audible Continuity, Diode / Transistor Verification Mode

Technical characteristics
- 15mm high LCD screen (Blue Illumination)
-Maximum display: 1999, automatic polarity display.
-Diode assembly test / P-N transistor junction test / HFE test of transistors.
-Test for continuity with buzzer sound in the circuit.

Parameter Range
DC voltage: 200mV / 2V / 20V / 200V ± 0.5%, 600V ± 0.8%.
AC voltage: 200V / 600V ± 1.2%.
DC current: 200 µA / 2 mA / 20 mA ± 1%, 200 mA ± 1.5%, 10A ± 3%.
Resistance: 200omhs / 2Komhs / 20Komhs / 200Komhs / 2Momhs ± 0.8%.

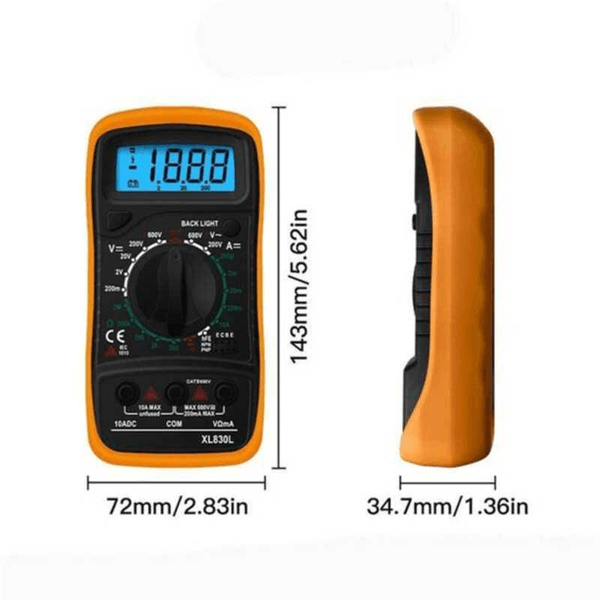

Dimension: Approximately 138mm x 69mm x 31mm.

Package included：

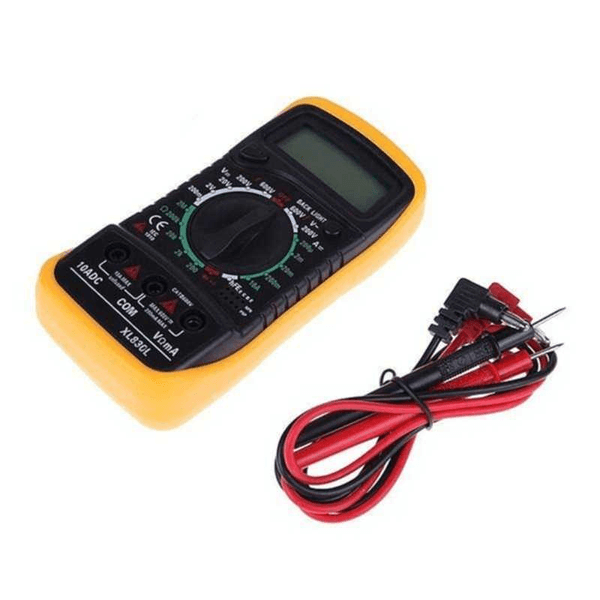

1 x Digital LCD Multimeter
1 x Test Leads
1 x Manual

Note: Due to the difference between different monitors ,, the color is subject to the actual object received
