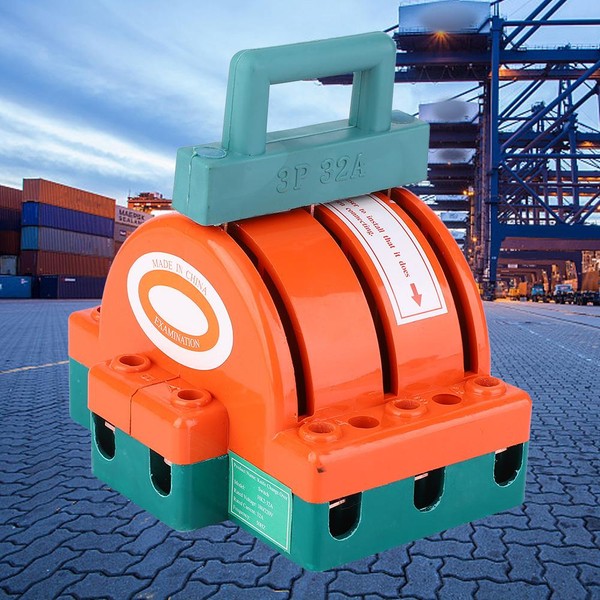

AC 380V 3P 32A Double Throw Knife Switch (3P 32A)

#ENS393746 ការិយាល័យអេឡិចត្រូនិក Selected by LITTLEFASHION

$5.20 App Only

Descriptions
描述
  • Features:
  • 1. The product is small in size and large in circulation.
  • 2. The design is novel and can be installed and wired without the need for a cover.
  • 3. Applicable to industrial enterprises and household electrical equipment, for conversion network and self-generated lines
  • 4. Generally suitable for dual circuit switching
  • 5. Wiring method with terminal connection, it has stable performance
  • Specification:
  • Condition: 100% Brand new
  • Item Type: Double Throw Knife Disconnect Switch
  • Product Use: Dual Circuit Switching
  • Shell Color: Orange Red
  • Rated Current: 32A,
  • Rated Voltage: 380V
  • Handle Material: Flame Retardant PA
  • Fixing Method: Nail Hole
  • Shell Material: ABS
  • Main Material: Copper
  • Base Material: DMC
  • Wiring Method: Terminal Connection
  • Material Characteristics: Coating
  • Optional Style: 3P 32A
  • Package List:
  • 1 x Double Throw Knife Disconnect Switch
  • 4 x Screws
  • Note:
  • Normal working conditions and installation conditions:
  • The ambient air temperature is not higher than +40℃, not lower than -5℃.
  • The altitude of the installation site does not exceed 2000m.
  • Humidity: When the maximum temperature is +40℃, the relative humidity of the air does not exceed 50%. At lower temperatures, higher relative humidity can be allowed, for example, 90% at 20℃. Special measures should be taken for condensation that occasionally occurs due to temperature changes.
  • The pollution level of the surrounding environment is level 3 or below.
  • The switch shall be installed in a place where there is no significant shaking, shock vibration and no rain or snow. At the same time, the installation site should be free from explosive atmospheres, and there should be no gas or dust in the medium to corrode the metal and damage the insulation.
  • Before installation, check whether the switch is intact and flexible.
  • Working conditions should be in accordance with the regulations.
  • The switch should be regularly maintained and adjusted to remove dirt and keep it clean so that the co
  • 1.产品体积小,流通量大。
  • 2.设计新颖,无需安装即可安装和接线。
  • 3.适用于工业企业和家用电器,用于转换网络和自发电线
  • 4.一般适用于双回路切换
  • 5.接线方式与端子连接,性能稳定
  • 规范:
  • 条件:100%全新
  • 项目类型:双掷刀断开开关
  • 产品用途:双电路开关
  • 外壳颜色:橘红色
  • 额定电流:32A
  • 额定电压:380V
  • 手柄材质:阻燃PA
  • 固定方法:钉孔
  • 外壳材质:ABS
  • 主要材料:铜
  • 基础材料:DMC
  • 接线方式:端子连接
  • 材料特性:涂层
  • 可选样式:3P 32A
  • 包装清单:
  • 1 x双掷刀断开开关
  • 4个螺丝
  • 注意:
  • 正常工作条件和安装条件:
  • 环境温度不高于+ 40℃,不低于-5℃。
  • 安装地点的海拔高度不超过2000m。
  • 湿度:最高温度为+ 40℃时,空气的相对湿度不超过50%。在较低的温度下,可以允许较高的相对湿度,例如20℃时为90%。对于因温度变化而偶尔发生的冷凝,应采取特殊措施。
  • 周围环境的污染等级为3级或以下。
  • 交换机应安装在没有明显晃动,冲击振动,无雨雪的地方。同时,安装地点应没有爆炸性环境,并且介质中不应有气体或灰尘腐蚀金属并损坏绝缘材料。
  • 安装前,请检查交换机是否完整,灵活。
  • 工作条件应符合规定。
  • 开关应定期维护和调整,以清除污垢并保持清洁,以使触点保持良好状态。
